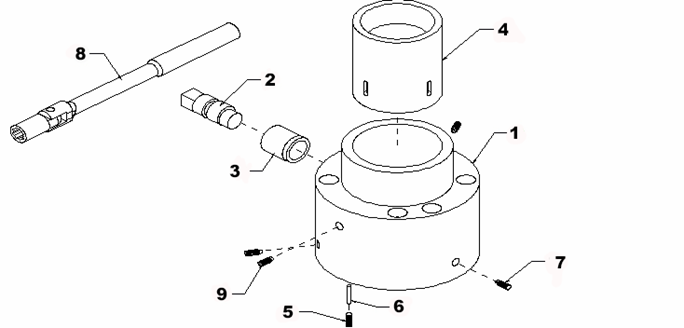

20012 16C MANUAL COLLET CLOSER PARTS LIST
| |
 |
|
| |
|
|
| |
| ITEM |
QTY |
PART NUMBER |
PART NAME |
| 1 |
1 |
20012-000188 |
16C MAIN BODY |
| 2 |
1 |
20012-000181 |
1/2” SQUARE CAM |
| 3 |
1 |
20012-000182 |
BUSHING |
| 4 |
1 |
20012-000183 |
16C COLLET SLEEVE |
| 5 |
1 |
20012-000184 |
1/4-28 x 1/2” SOCKET SET SCREW |
| 6 |
1 |
20012-000186 |
3/16 x 7/8” DOWEL PIN |
| 7 |
3 |
20012-000194 |
1/4-28 x 1/2” SOCKET SET SCREW
MODIFIED |
| 8 |
1 |
20012-000185 |
CAM WRENCH WITH 1/2 IN SOCKET |
| 9 |
1 |
20012-000187 |
1/4-28 x 1/2” SOCKET SET SCREW
MODIFIED |
|
|
